CONSTRUCTION EQUIPMENT

LIFT, TELEHANDLER [36']

Where to find LIFT, TELEHANDLER  36 in Eunice

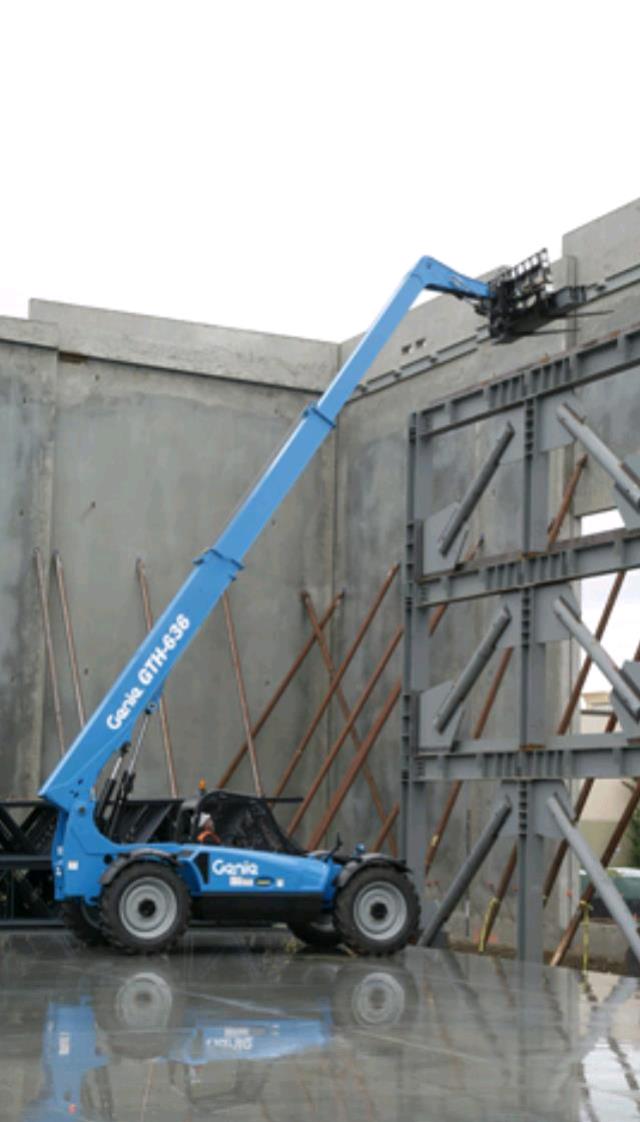

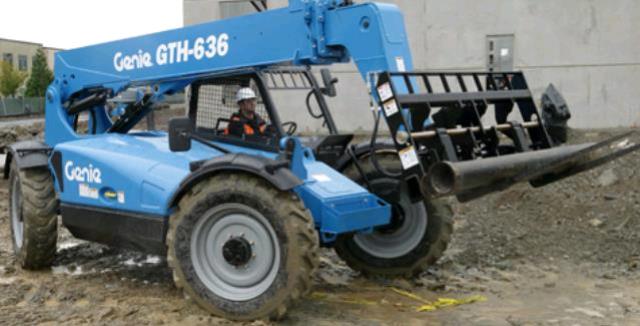

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

4 Hour: $185.00
Daily: $284.00
Weekly: $852.00
Monthly: $2,556.00
Comments:
  • FOR CUSTOMERS TRAILER:
  • SHOULD BE RATED FOR 17,600 LBS
  • GOOSENECK
  • AT LEAST 102 INCHES WIDE (8.5 FT)
  • Maximum Lift Height 36 ft (10.97 m)
  • Maximum Forward Reach 21 ft 11 in (6.68 m)
  • Maximum Lift Capacity 6,000 lbs (2,722 kg)
  • Power Source Deutz TD 2.9 L4 turbo charged diesel, Tier 4f 74 hp (55.2 kW)*
  • Drive Speed 18 mph (29.0 km/h)
  • Weight** 17,600 lbs (7,983 kg)
  • FUEL TANK CAPACITY: 30 GAL
  • fuel tank capacity:
  • Height, stowed -7 ft 10 in
  • Length, stowed (without forks) -17 ft 10 in (5.44 m)
  • Width -7 ft 11 in (2.41 m)
  • Wheelbase 10 ft 11 in (3.33 m)
  • Ground clearance, center 1 ft 3 in (0.38 m)
  • Ground clearance, axle 1 ft 5 in (0.43 m )
  • Fork cross section
  • 2 x 4 in 51 x 101 mm Productivity
  • Maximum lift capacity 6,000 lbs (2,722 kg)
  • Lift capacity at maximum height 5,000 lbs (2,268 kg)
  • Lift capacity at maximum reach 1,500 lbs (680 kg)
  • Drive speed 18 mph (29 km/h)
  • Boom up/down 10/8 sec 10/8 sec
  • Boom extend/retract 11/9 sec 11/9 sec
  • Draw bar pull 15100 lbs (6849 kg)
  • Turning radius, outside (4WS) 13 ft 4 in (4.06 m)
  • Auxiliary hydraulic flow 2-15 gpm 7.57-56.8 lpm
  • Auxiliary hydraulic pressure 3,000 psi 206.8 bar
  • Tires, standard size 13 x 28 in, 12 ply
  • Power source Deutz TD 2.9 L4 turbo charged diesel,
  • Tier 4f 74 hp (55.2 kW)*
  • Electrical system
  • System voltage 12 volt
  • Alternator 95 amp 1000 CCA at 0 F (-18 C)
  • Hydraulic tank capacity 34.0 gal 128.7 L
  • Hydraulic system capacity (w/tank) 46.5 gal 176.0 L
  • Fuel tank capacity (27.0 gal ) 102.2 L
  • Weight**17,600 lbs
  • Standards Compliance ANSI/ITSDF B56.6, CSA B335
  • Load Chart GTH -636***
Add of the above items to my quote request
for a period of   4 hour(s)   day(s)   week(s)   month(s)




* Prices are subject to change.

* Please call us for any questions on our lift telehandler 36 foot rentals in Eunice and Opelousas LA, also serving surrounding cities of Lafayette, Port Barre, and Church Point Louisiana.
